Result details list¶

Usage¶

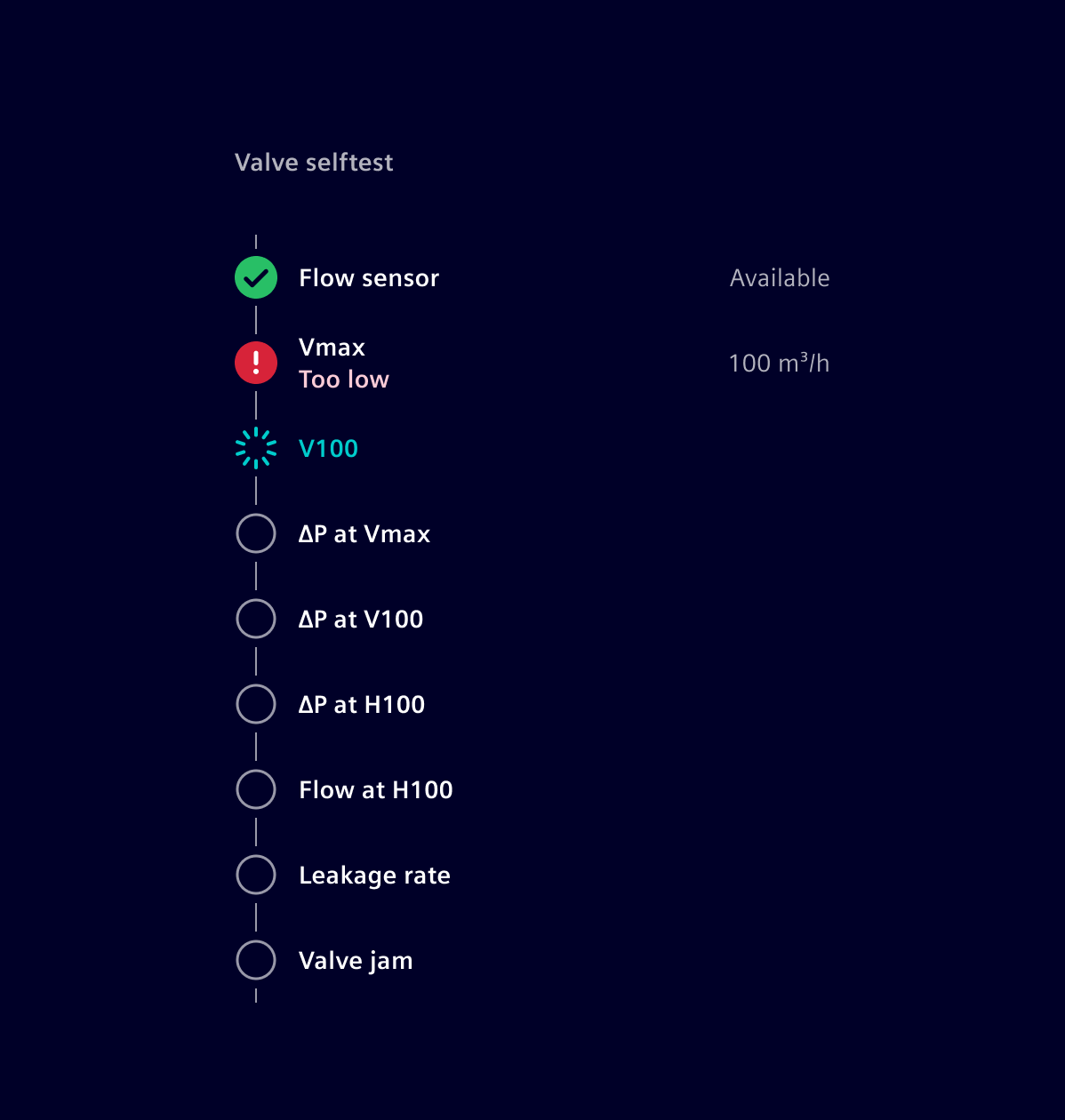

It helps to visualize and communicate the steps (including status and results) of a procedure or process. This can be used for scenarios like self-test procedures, onboarding processes and more.

When to use¶

• To visualize test procedures which require multiple steps that need to be performed in a specific order.
• For clear and effective communication of the current status and results.
• To communicate a timeline.

Design¶

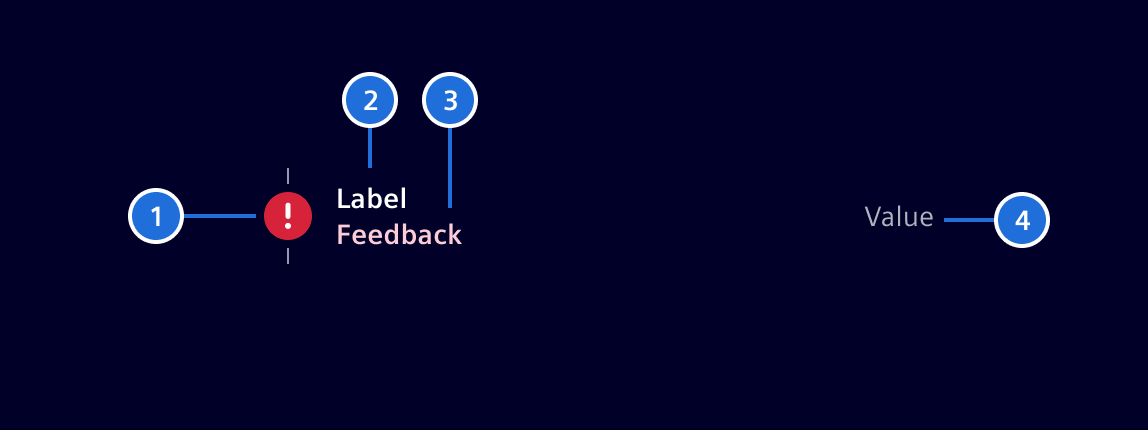

1. Icon, 2. Label, 3. Feedback (Optional), 4. Result value (Optional)

Icon¶

• Icons give a visual cue about the current state or the kind of step.
• Basic icons are offered for the following steps: Open, In Progress,Done, Issue or Unsupported.
• The component allows also to use customized icons.

Variations¶

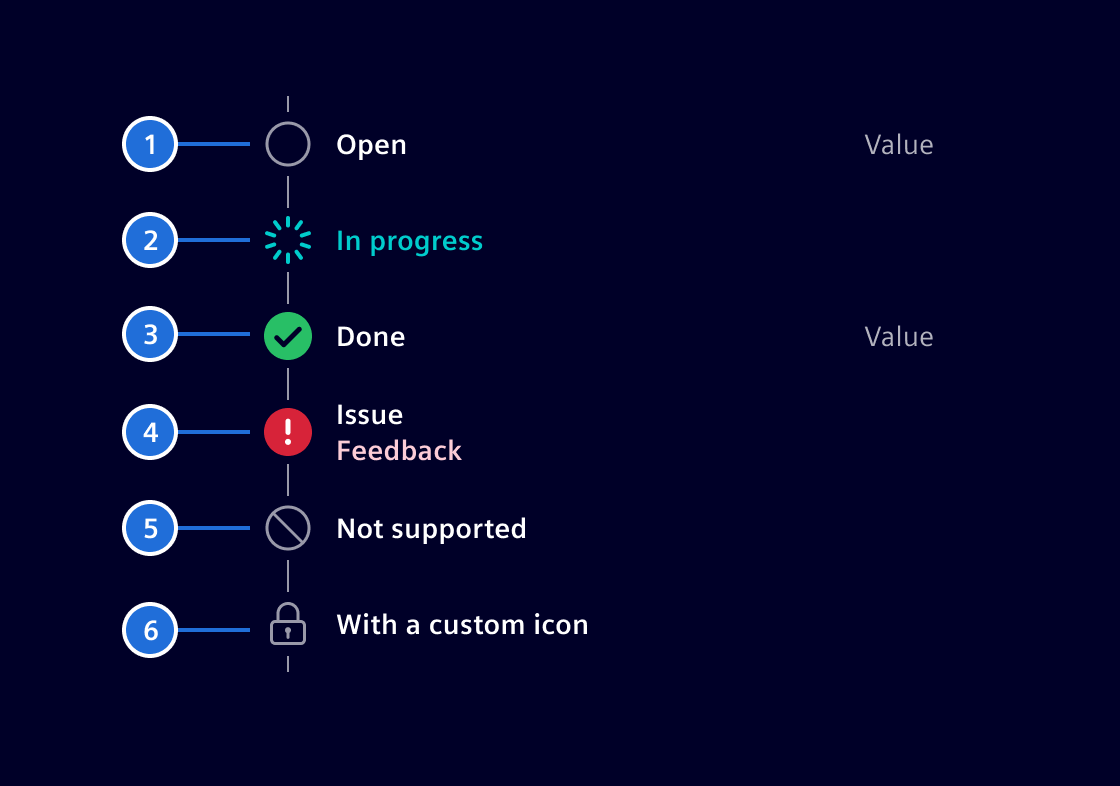

1. Open step, 2. In progress, 3. Done, 4. Issue with optional feedback, 5. Unsupported step, 6. Customized icon

Code¶

This component can be used to display a list of chronological steps for a specific process.

Each step contains a description and a state. Optionally a step can have a value as well as an error message. Each step can also define a custom icon to be displayed.

This component requires an array of ResultDetailStep objects as an input. The possible states are defined in the enum ResultDetailStepState. More information can be found below.

Usage¶

import { SiResultDetailsListComponent } from '@siemens/element-ng/result-details-list';

@Component({
  imports: [
    SiResultDetailsListComponent, ...
  ]
})

SiResultDetailsListComponent API Documentation¶

Input Properties¶

Types Documentation¶
